Glovebox Solutions For Battery Applications
Supporting your projects from research and development to full commercial cell productionThe Right Glovebox Solution For All Applications In The Battery Field
JACOMEX containment enclosures and purification systems allow for a purified and clean atmosphere, preserving the properties of lithium-ion battery cells and of other oxydation sensitive materials (Sodium-ion, All Solid State Batteries). Our technology is designed to remove traces (<1ppm) of Oxygen (O2), Moisture (H2O), and optionally Nitrogen (N2).
Our partnerships in the industry, with innovative and strong technology providers offer our customers integrated solutions for the full battery life cycle.
A Dedicated Standardized Range For R&D And Industries
From The PureSmart, PureMod up to the PureEvo, the « PURE » Standardized range of JACOMEX Gloveboxes offers exclusive features for:
- Electrode Manufacturing
- Battery cell assembling
- Battery cell Inspection and Testing
- Battery recycling
Environmentally friendly by design – Energy Saving for all!
Preserving our environment should not be a compromise. Therefore, the Energy Saving option, is included and offered free of charge on all the JACOMEX Gloveboxes.
(Standard consumption = 198 Watts – Energy Saving = down to 31 Watts )
Custom Solutions – Fit For Purpose Industrial Installations
Our offer:
- State of the art containment enclosures tailored around the process
- Third party process and electrolyte manufacturing integration
- Automation, Robotized handling and cell assembling
- Furnace and oven integrations
- Large and custom Inert gas purification and management systems
- Temperature controls
- Laminar flow
- Special filtration for microelectronics grade purity.
- Ergonomic, Risk assessment.
Purified Inert Gas Glovebox Range Common Standardized Configurations
- Modular design 2,3, 4 glove workstations
- Single or face to face options
- Purified Argon gas operation,
- Nitrogen removal management,
- Solvent trapping, disconnectable or regeneratable,

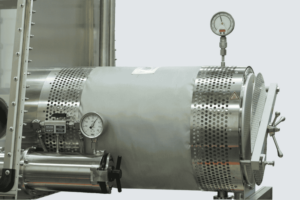

- Heated vacuum antechambers, Ø150mm – Ø400mm.
- User Friendly HMI, User management and 2 months data recording
- Low maintenance for reduced Total Cost of Ownership (TCO)
- 3 year limited warranty…
Example of Achievement
Custom version of the Pure range equipped with a double line purification unit, a heating chamber, and a disconnectable solvent trap, a typical configuration for research in the battery industry.
Our client, an expert in silicon, is interested in a solution that is lighter, less expensive, and better for the environment than the conventional lithium-ion batteries we know.
Our customer was won over by the quality of our products, but also by the sales approach of our teams, involved and enthusiastic, who were very project-oriented and demonstrated real technical expertise. The relationship with our after-sales service, particularly for the installation of the glove box, was also very much appreciated.
Jacomex is proud to support its clients in innovations that will help improve the world of tomorrow.
Glovebox for Battery Research – E-Magy customer in the Netherlands
Recommanded Features And Options
For Battery Field
ALD (Atomic Layer Deposition) for Glove Box
Slot Die coating process
Vacuum Evaporation
Pharmaceutical drying Ovens
Ventilated Antechamber for Glove Boxes
Spincoater for Glove Boxes
P(Trap) – Solvent Trap for Glove Boxes
Supporting
Events
Our Range Of Purified Gloveboxes
Our Recommandations For Battery Applications With <1ppm O2 And H2O

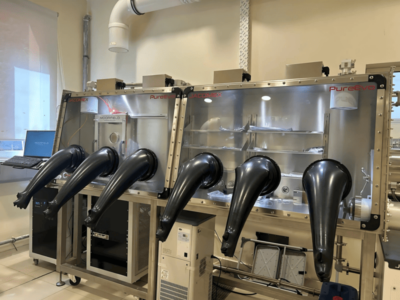

PUREEVO Glovebox
Glove Boxes with Stand-alone Purification Units < 1 PPM H2O - O2 The PUREEVO glove box is a glove box designed for Research and Industry for all...
PUREMOD Glovebox
Glove boxes with stand-alone purification units < 1 PPM H2O - O2 The PUREMOD glove box is a glove box designed for processes under controlled...
PURESMART Glovebox
Glove boxes with Stand-Alone Purification Units < 1PPM H2O - O2 The PURESMART Glove Box is a controlled atmosphere glove box for the products’...
GMEGA Glovebox
Large Glove Box Large volume adjustable glove box under purified and controlled atmosphere for industrial and production applications. Applications...
