Heating Vacuum Chamber for Glove Boxes

Heating vacuum chamber

Heated airlocks are used in particular to remove moisture from samples or objects before they are transferred to the glove box environment. Jacomex designs and manufactures high performance heated vacuum airlocks for glove boxes under inert atmosphere, based on our usual models of double door transfer airlocks.


Technical Specifications

Technical specifications of the heating vacuum chamber:

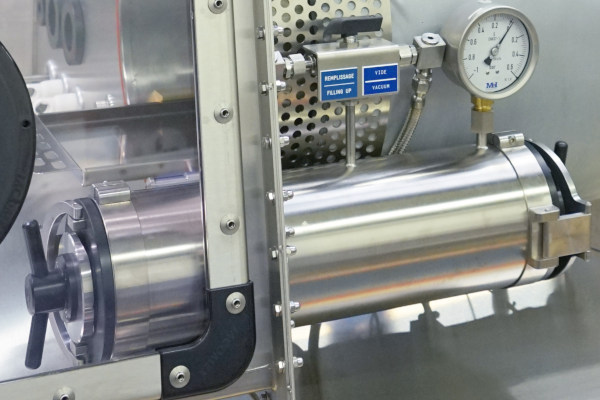

System suitable for vacuum airlocks Ø 150 – 250 – 400 mm
Airlock Ø150 mm: temperature 150°C

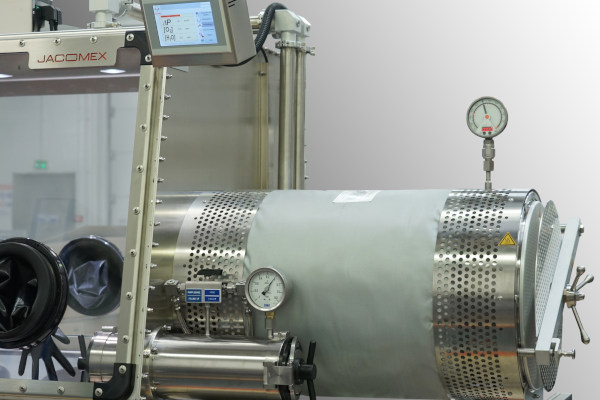

Airlock Ø250 – 400 mm: temperature 250°C
Designed to operate under vacuum
Supplied complete with regulation, safety, programming and control on touch screen and electronic vacuum gauge

The vacuum airlock allows the transferred material to be heated, evacuated and purged of gas before entering the glove box prior to processing. It is possible to use it directly for heat treatment of samples like a hot plate.


This equipment can be installed on the following glove box models

Controlled atmosphere glove box for the protection of products < 1PPM H2O – O2

Glove box designed for controlled atmosphere processes < 1PPM H2O – O2

Glove box designed for research and industry for all applications < 1PPM H2O – O2
