Glove Box Gas Collector

There are many enclosures where the products, substances, vapours and discharges present health risks. Glove boxes provide a first safety barrier for the operator and some filters can trap particles or capture vapours. Nevertheless, the pressure in a glove box varies and excess pressure or gas evacuations can result in dangerous emissions outside the enclosure.

To ensure safety all the discharges must then be collected to prevent their dissemination in the room or the laboratory. Gas collectors are designed to collect all the emissions from a glove box under purified neutral gas at a single point and evacuate them to an extraction network. They can also be mounted on other types of glove boxes.

Applications

  • Research and R&D laboratories
  • Pharmaceutical and Medical sectors
  • Nuclear sector
  • Heavy Industry
  • Energy sector

Technical Specifications

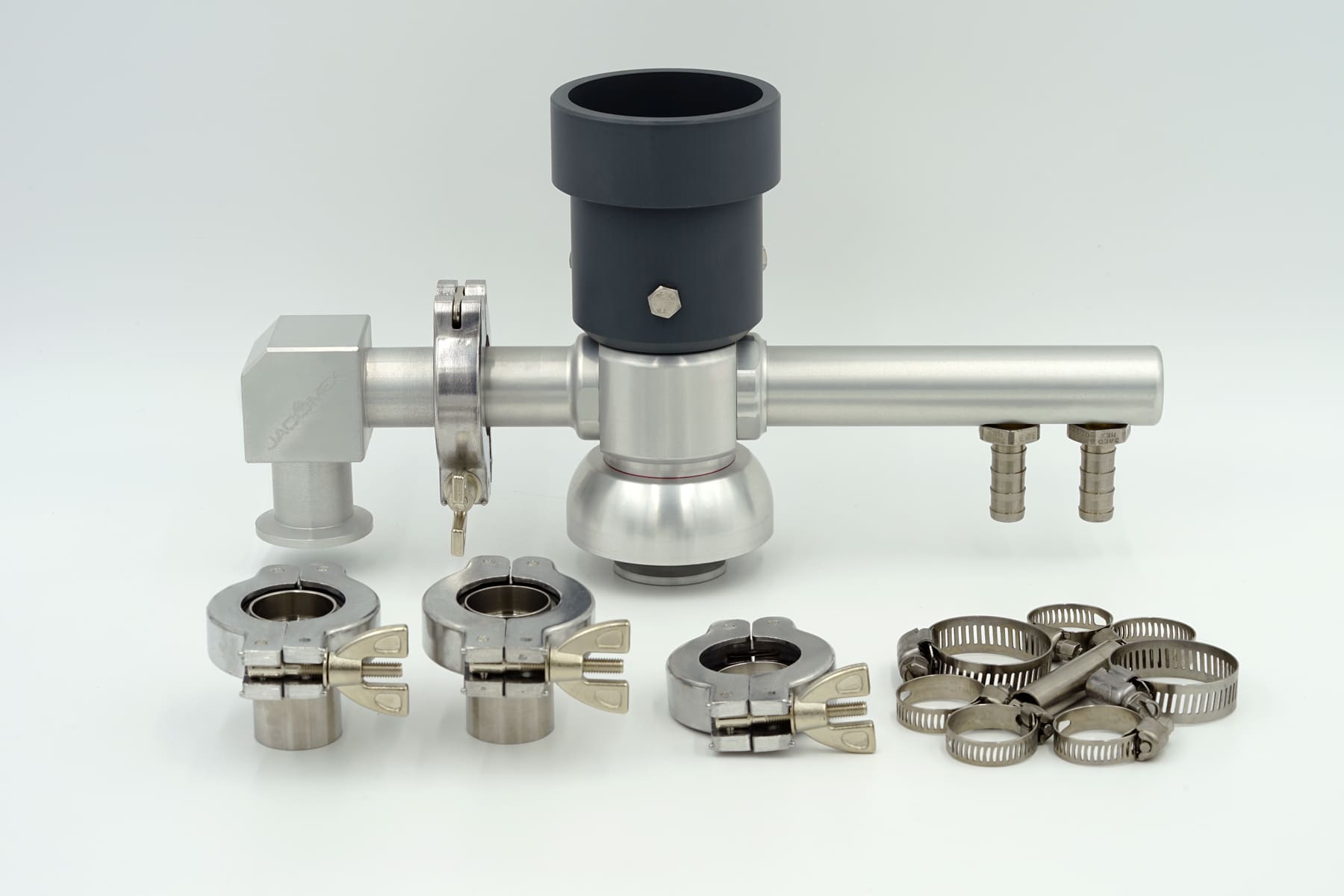

Technical specifications of the Gas collector:

Connection and main assembly at the outlet of the hydraulic seal or mechanical dry seal by ISO KF DN25 end fitting.
ISO KF DN25 connection to vacuum pump outlet.
Barbed end connection to the purification unit pressure regulation outlet.
Barbed end fitting to purification unit regeneration outlet.
Pack of clamps and fittings.

Compatibility

This equipment can be installed on the following glove box models

Modular glove box with autonomous purification unit <1PPM H2O – O2

Compact purified glove box <1PPM H2O – O2 for research and industry

Modular glove box in gas scavenging. Easy to use, low maintenance.
