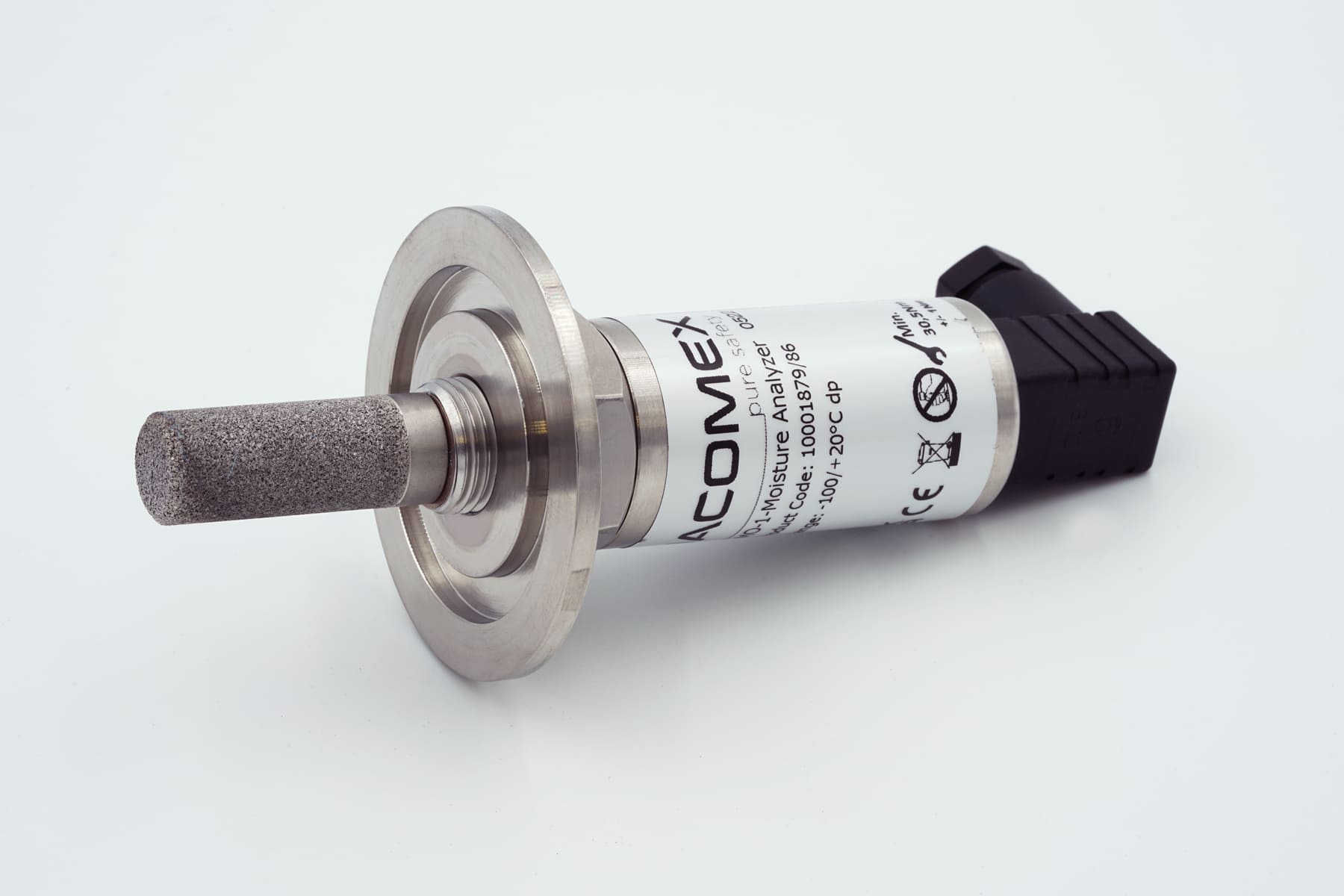

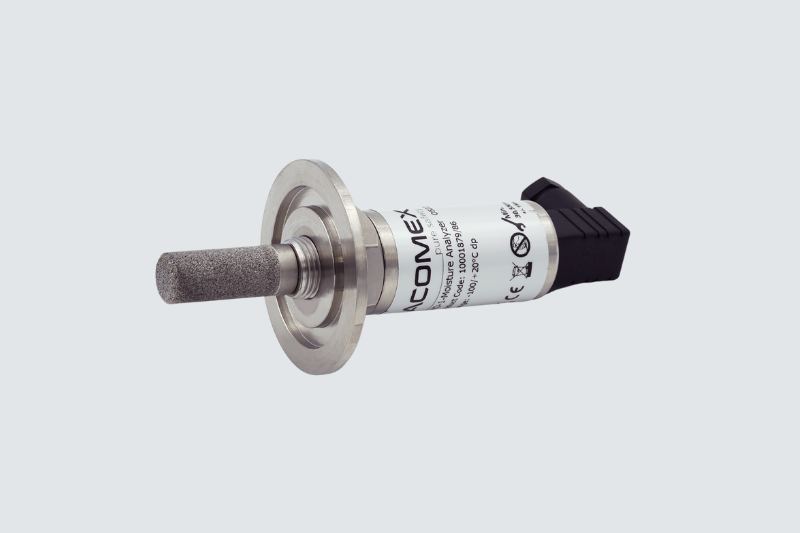

H2O Analyser for Glove Boxes

H20 Analyzer

  • Moisture measurement in glove boxes.
  • Solid-state transmitter sensors:
    • Version with measurement in ppm for glove boxes with gas purification units.
    • Version with %RH measurement for climatic glove boxes, glove boxes with humidity control, pharmaceutical isolators.
  • Measurement report on touch screen.

Applications

Technical Specifications – Information

Technical specifications of H20 Analyzer:

H20 ppm Analyzer: metallized ceramic sensor – Dew point transmitter -100/+20°C PR (DP) – Display in ppm (0.01-23700ppm accuracy ±2°CPR) – 7-point calibration certificate (NPL – NIST)
%RH analyzer: transmitter with measuring range 0-100%RH – Simultaneous temperature measurement. 3-point calibration certificate.

Compatibility

This equipment can be installed on the following glove box models

Controlled atmosphere glove box for the protection of products < 1PPM H2O – O2

Glove box designed for controlled atmosphere processes < 1PPM H2O – O2

Glove box designed for research and industry for all applications < 1PPM H2O – O2

Modular glove box for gas flushing. Easy to use, low maintenance.

High security isolator under neutral gas filtered in depression or overpressure under filtered atmosphere.
