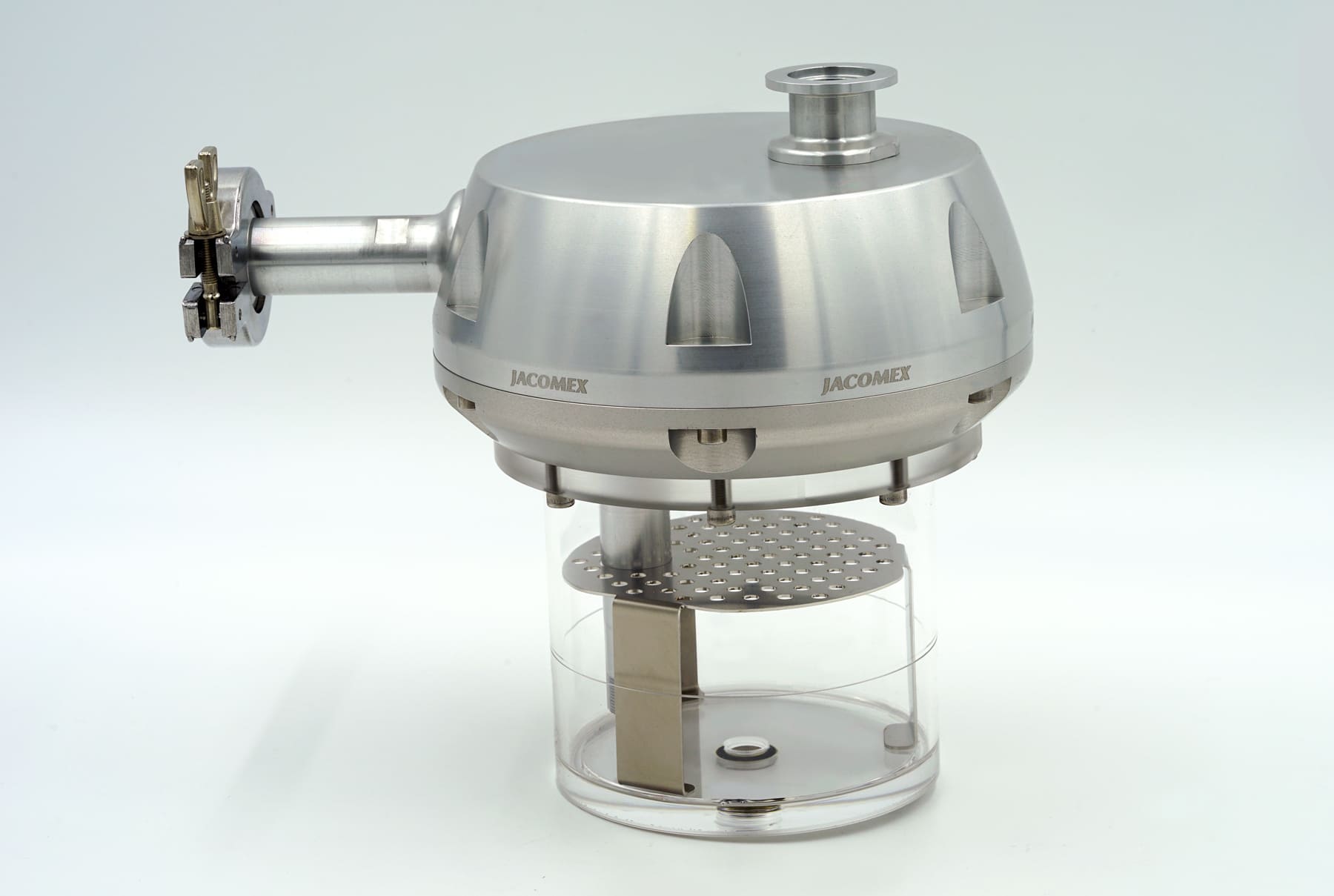

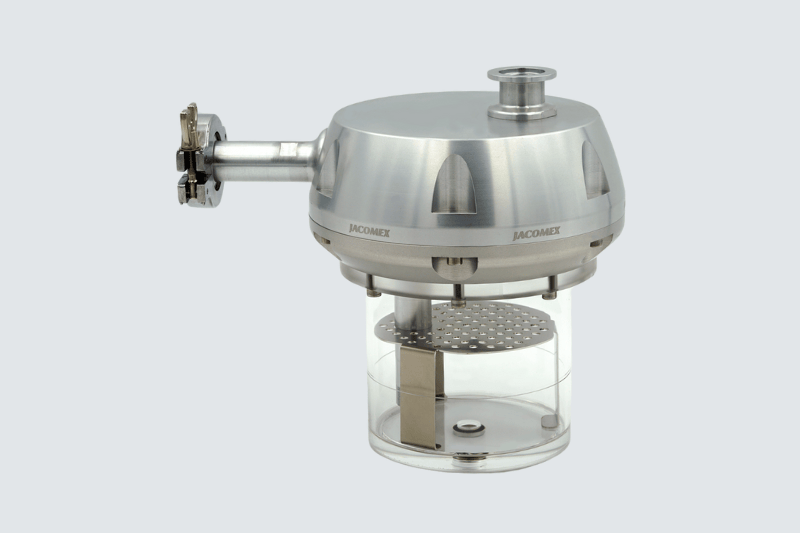

5m3/h Hydraulic guard

5m3/h Hydraulic guard

5m3/h Hydraulic guard

For glove boxes operating mainly in a gaseous atmosphere and purified atmosphere, the use of a hydraulic guard has interesting technical aspects.

In addition to its essential function of quickly evacuating excess gases in a glove box, it offers other advantages, such as:

  • Maintaining the enclosure at the pre-set working pressure.
  • Increased comfort of handling with gloves.
  • Eliminates the need for a vacuum pump in the pressure regulation process.
  • Safety equipment allows users to mechanically control an accidental rise in pressure.

Applications

Technical specifications – Information

Technical data:

Section for mounting on enclosure wall: ISO KF DN25 connection
Can be equipped with a HEPA filter inside the enclosure
Collectable exhaust: ISO KF DN25 connection
Fluid used/recommended: oil with low saturation vapour pressure
Easily adjustable opening pressure by adjusting the fluid level
Maximum flow 5m3/h
